6 Bays SSD Data Eraser
  •  Supports M.2 NVMe SATA SSD
  • Complied with NIST Purge & Clear, DoD 5220.22-M and more
  • Supports Asynchronous Erasure with Hot Swap
  • Generate Erasure Report Complied with NIST & R2V3
  • Large Touch screen to display progress and SMART info
Contact

0 Years

Experience in
Data Erasure Technology

0+

Suported Erasure Standards

0 GB/min

Ultra High Speen
Data Erasure

0+

Various kinds of Eraser
for different media storage device

MGE6 M.2 NVMe/SATA 6 Bays SSD Data Eraser


Compliant with ISO27001 Standard

In addition to hard drive data erasure, it can also retain and extract the Data Erasure Certificate & Log Report. It’s not only compliant with ISO specification for the elimination of storage media but also protects information security for enterprises.

Data Erasure Certificate & Log Report


Perfect Solution for Hard Drive Erasure

U-Reach Data Erasure is the perfect solution for Data Erasure. No software needed, no complicated setting process, no license fee. One-time investment for long term

Multiple Erasure Standards with Customized Main Menu

Built-in 30+ Erasure Standards to satisfy different erasure requirements. You can also Set up 8 commonly used erasure standards in the Main Menu to simplify your operating process.

800-88 Clear
NIST 800-88 Purge
DoD 5220.22-M
DoD 5220.22-M ECE
NSA Manuel 130-1
NSA Manuel 130-2
US Army AR380-19
BMB21-2019
DoE M205. 1-2
Canadian OPS-ll
Canadian CSEC ITSG-06

German VSITR
Russian GOST p50739-95
US Air Force 5020
British HMG IS5 Baseline
British HMG IS5 Enhanced
Navso P-5329-26 RL
Navso P-5329-26 MFM
NCSC-TG-025
Bruce Schneier
Australian ISM-6.2.93


Product Features

Data Erasure Certificate & Log Report

All the execution processes can completely be recorded, such as running time, operation mode, the speed of the device, etc. The report can be exported via a USB drive to a computer for viewing and can also be used with an external printer. After the operation is completed, an erasure report will be produced, which reduces transcription errors to ensure that the operation is fully performed.

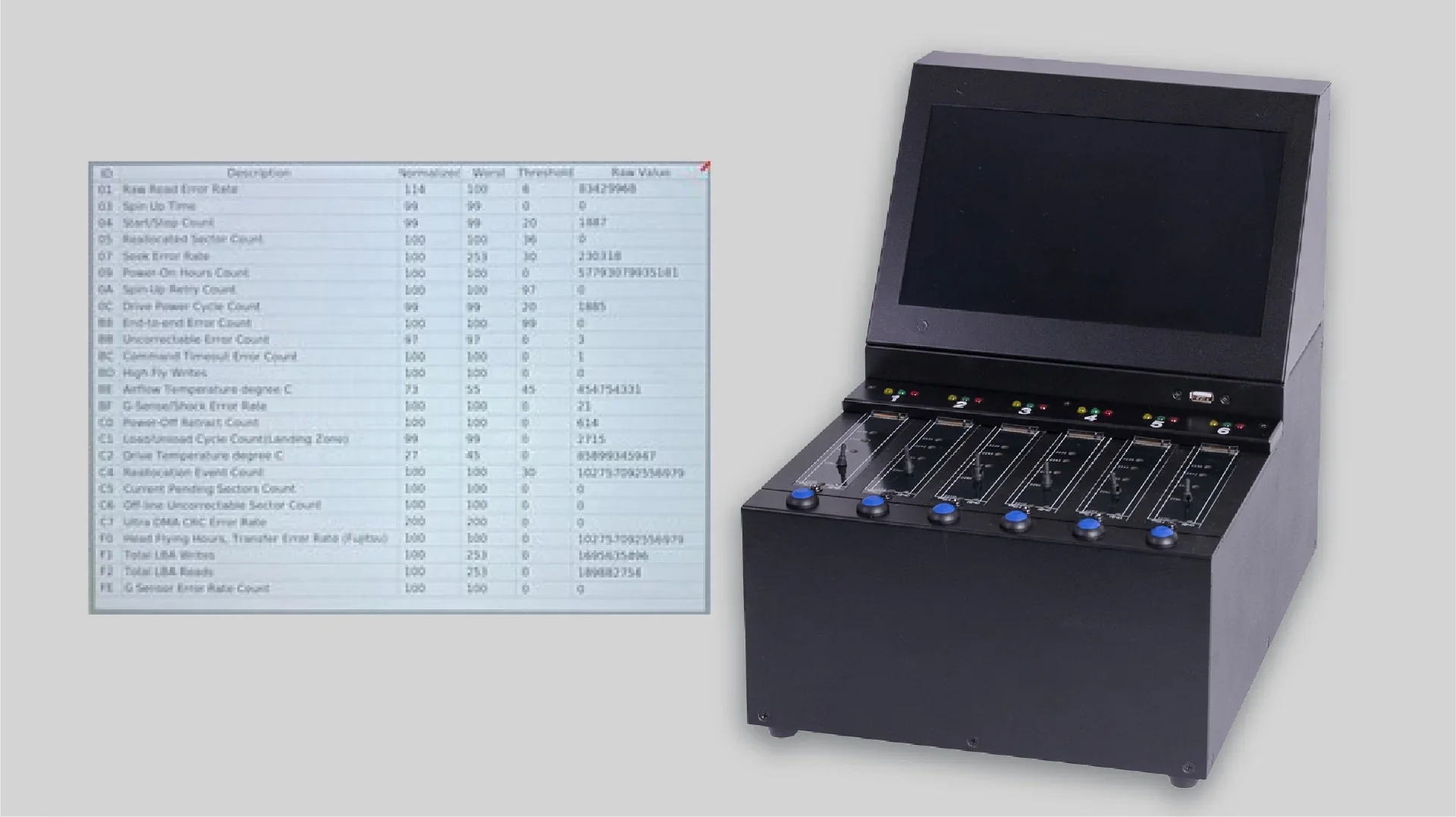

Smart Info

"SMART Info" provides access to the drive's data. This includes the drive model, version, serial number, capacity, SMART Info, and erase write values. When printing the erasure report, the SMART info will also be output synchronously. Please note that the device needs to support the SMART Info command.

Asynchronous erasure upgraded once again

The MGU12 stands out by enabling various interfaces on a single device to simultaneously choose different erasure methods. This represents an upgrade compared to previous models, where only a single erasure method could be selected at a time. Unlike earlier models, the MGU12 allows targeted selection of different erasure methods for different interfaces, enhancing flexibility and streamlining the erasure process. It can meet the diverse interface and erasure method requirements on the same device.

Stand-alone Operation & No Computer Virus Infection Risk

The risks from the Internet include computer viruses, data tampering, and other issues. The standalone operation can avoid information security leakage and strengthen the security management level.

Erasure Verification by Ontrack & SGS

Passed Level 1 & 2 NIST Erasure Verification by Ontrack and DoD Erase Comp verification by SGS.

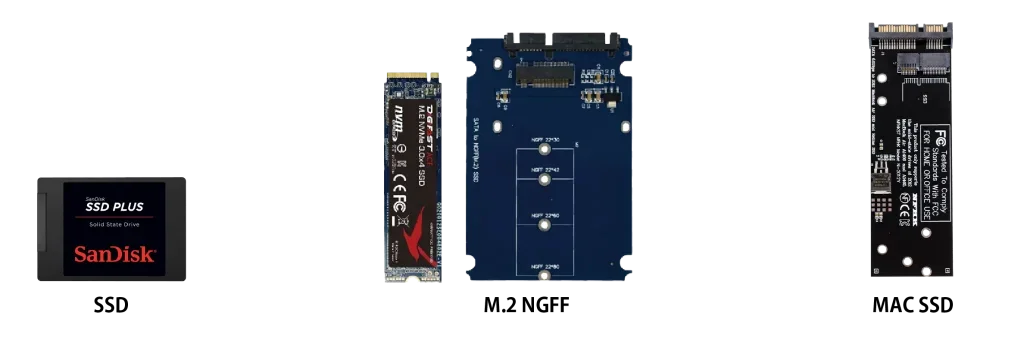

Support Multiple Interfaces

Featuring four different interfaces – M.2, U.2, SAS, and USB3.0 – combined with U Reach’s cross-signal and device backward compatibility features.(Please contact the JetMedia Support Team for more information)


Product Overview

  1. 1. Touch Screen
  2. 2. Hard disk slot *6
  3. 3. Blue quick button
  4. 4. LED Indicator (Red: Fail /
       Green: Pass / Yellow: Powered)
  5. 5. Erase Log output, firmware update
       USB hole
  1. 6. Power switch and power input hole
  2. 7. Static grounding port
  3. 8. Printer connection USB port
  4. 9. Fan

Basic Spesification

Wiping Speed12 GB / min.
Standard Erase Function
  1. 1-Pass (00)
  2. 1-Pass (Random)
  3. DoD 5220.22-M
  4. DoD 5220.22-M ECE
  5. NSA Manual 130-2
  6. US Army AR380-19
  7. BMB21-2007
Special Erase Command (HDD/SSD original manufacturers’ build-in command)
  1. Secure Erase
  2. Secure Erase +Verify
  3. Enhanced Secure Erase
  4. Enhanced Secure Erase +Verify
User Defined Erase
  1. User Defined Erase
  2. Settings (User Defined Erase)
UtilitiesDisplays information of the firmware version, serial number of the eraser and the option for FW Update.
Supported O/SAll (Windows / Mac / Linux / other proprietary systems)
Operational ModeFPGA Architecture / Standalone / No PC or Internet Required
LED Indicators3 LED Indicators per port
Yellow (Power On), Green (Pass), and Red (Fail)
LanguagesTraditional Chinese, Simplified Chinese, English, Spanish, Portuguese, Japanese, German, French, Italian, Korean, Russian



Hardware Specifications

DC Output (Power)12V 12.5A
TemperatureOperating temperature: 5°C ~ 45°C
Non-operating temperature:-20°C ~ 85°C
HumidityOperating humidity: 20% ~ 80%
Non-operating Humidity: 5% ~ 95%
Weight9kg
Size
MGE6 Datasheet Download Contact
